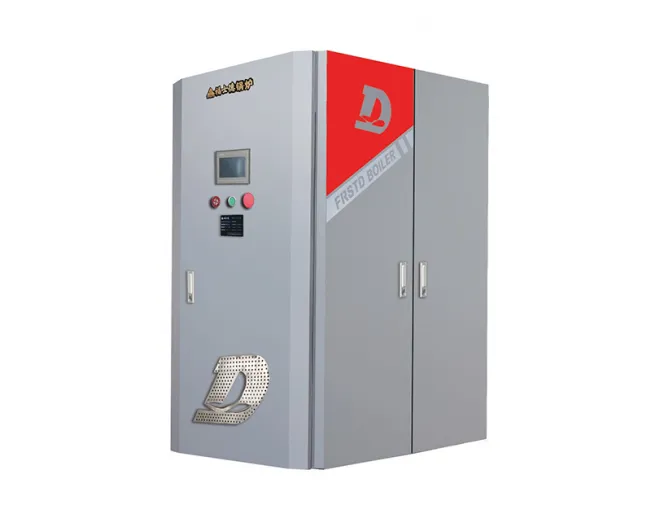

D Series Fully Premixed Low-NOx Steam Generator

Home > Products > Steam Boiler Series > D Series Fully Premixed Low-NOx Steam Generator

Integrated (Economizer + Condenser) Condensing Heat Exchanger: Under specific conditions, the boiler's thermal efficiency can reach up to 102%.

Inquire Now

Products Description

1. Integrated (Economizer + Condenser) Condensing Heat Exchanger: Under specific conditions, the boiler's thermal efficiency can reach up to 102%.

2. Economizer and Condenser Use ID Steel-Aluminum Composite Finned Tubes: The economizer and condenser utilize ID steel-aluminum composite finned tubes.

3. Multiple Interlocked Safety Protections: Features multiple interlocked safety protections.

4. Advanced Fully Premixed Combustion Technology: Uses advanced fully premixed combustion technology, achieving NOx emissions as low as 30 mg/m³.

5. Fully Automatic Control System: Equipped with a fully automatic control system capable of group control and remote monitoring functions.

6. Rapid Steam Generation: Produces steam within 5 minutes, enabling quick and flexible steam usage.

7. No Boiler Registration or Annual Inspection Required: No need to register the boiler or undergo annual inspections.

8. Humanized Industrial Design: Compact design with a small footprint, easy to install, maintain, and operate.

Technical Parameters

Project

Rated evaporation capacity

Rated pressure

Rated steam temperature

Water volume

Thermal efficiency%

Exhaust temperature design

Natural gas consumption

Steam production time

Water Inlet

Steam vent

Safety valve

Sewage outlet

Chimney

Overall dimensions （length*width*height）

Weight

Model

Kg/h

Mpa

℃

Natural gas%

℃

Nm³/h

min

mm(φ)

DLZQ-500

500

1.0

184

29.3

35.3

DN25

DN40

DN32

DN40

219

1725*1450*2030

1210

LSS1-0.8-Q

1000

0.8

175

49.2

70.6

DN25

DN40

DN32（two）

DN40

219

2030*1580*2160

1360
